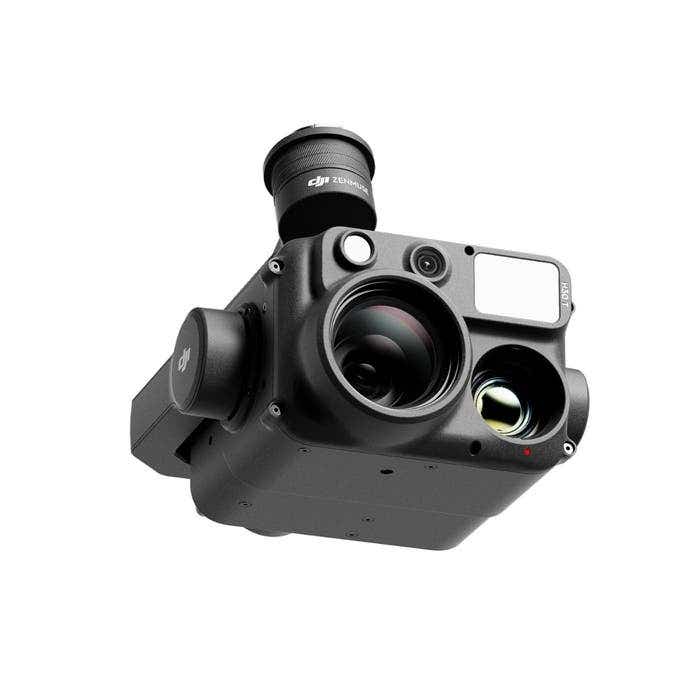

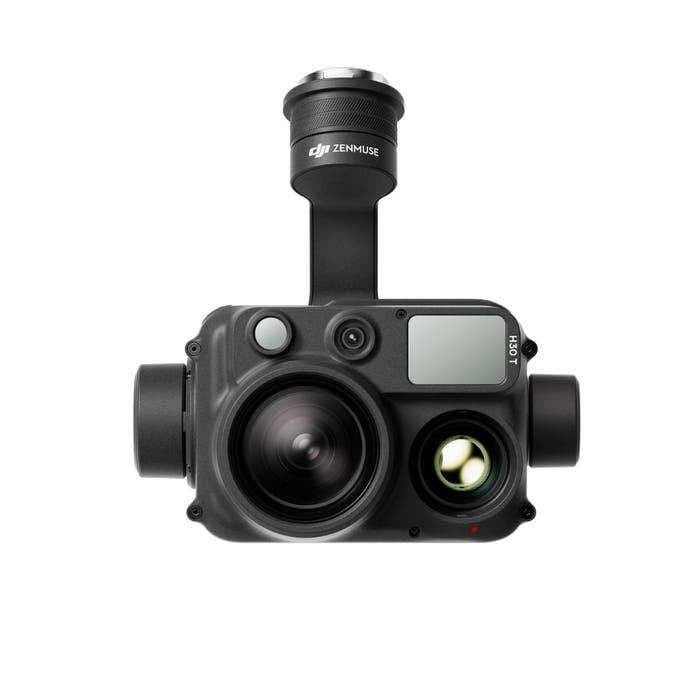

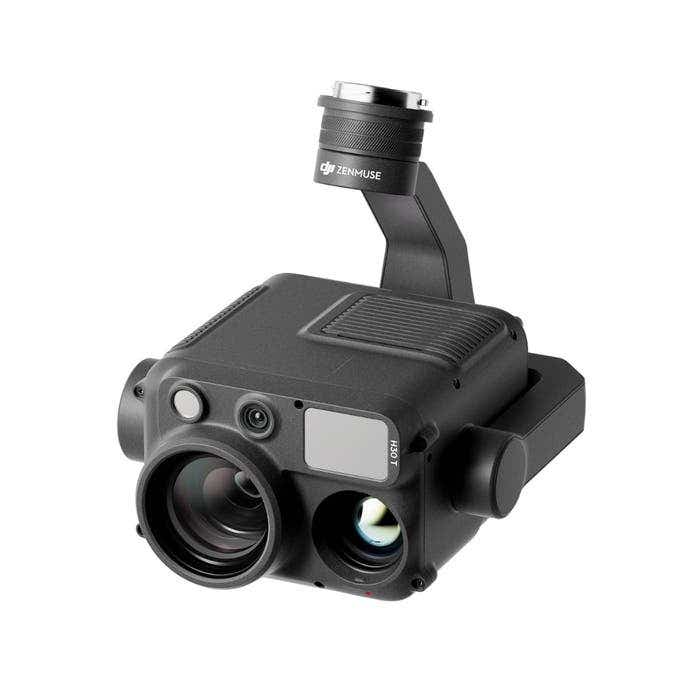

DJI Zenmuse H30T with Care Enterprise Plus

Advanced Multi-Sensor Imaging for Demanding Aerial Missions

The DJI Zenmuse H30T is DJI’s most advanced multi-sensor camera payload to date. Designed for seamless integration with the DJI Matrice 300 and 350 RTK, the H30T delivers enhanced imaging capabilities across five synchronized sensors: wide-angle, zoom, thermal, laser rangefinder, and NIR auxiliary light.

Whether you’re conducting critical inspections, tracking suspects, or assessing firegrounds, the H30T Zenmuse gives drone teams superior image clarity, detection range, and low-light performance — all in a single, stabilized payload.

Key Features of the DJI Zenmuse H30T Camera Payload

Engineered for enterprise operations, the Zenmuse H30T brings together multiple sensor technologies to deliver field-ready results in any environment.

• 4K Wide-Angle Camera: Capture broad situational context with high-res detail.
• 200× Hybrid Zoom Camera: Inspect from a distance without sacrificing clarity.
• High-Resolution Thermal Imaging Sensor (1280×1024): View heat signatures with more definition and radiometric precision.
• Laser Rangefinder (3,000m): Accurately measure distances to objects in the field.
• NIR (Near-Infrared) Auxiliary Light: Illuminate subjects in low-light without visible detection.
• Enhanced Low-Light Mode: Maintain visibility during dawn, dusk, or overcast missions.
• Intelligent Tracking: Subject lock, AI recognition, and stabilized tracking support high-pressure operations.
• IP54 Weather Rating: Ready for wet, dusty, and unpredictable outdoor conditions.
• Seamless DJI Integration: Full compatibility with DJI Pilot 2 and the Matrice 300/350 RTK.


Use Cases for the H30T Zenmuse Camera Payload

From infrastructure inspections to night operations and emergency response, the DJI Zenmuse H30T is built for versatility.

• Industrial Inspection
  Identify cracks, leaks, overheating, or equipment fatigue using thermal and visual overlays.
• Search and Rescue
  Use high-zoom, thermal, and low-light capabilities to detect heat signatures and movement in challenging terrain.
• Public Safety and Surveillance
  Maintain visual lock on suspects, vehicles, or crowd activity with enhanced zoom and IR lighting.
• Firefighting and Overhaul
  Locate hotspots, roof penetrations, or structural risks during or after a fire event.
• Disaster Response
  Assess damage zones, locate survivors, and map hazards from a safe distance.
• Utility and Energy Asset Monitoring
  Inspect towers, substations, and solar arrays with thermal clarity and zoom versatility.



Is the DJI Zenmuse H30T the Right Payload for Your Operation?

If your operations demand high-performance imaging in unpredictable, high-risk, or low-visibility conditions, the DJI Zenmuse H30T camera is a field-proven upgrade. Its quad-sensor payload reduces equipment swaps, streamlines data collection, and extends your mission’s reach without adding complexity.

The DSLRPros Advantage: Field-Tested Support for Enterprise Payloads

When you buy the Zenmuse H30T from DSLRPros, you're not just getting a camera — you're getting a mission partner. We work directly with law enforcement, utility teams, and industrial operators across the U.S. to ensure your payload performs exactly as expected.

• Hands-On Payload Testing: Every unit is verified for compatibility, calibration, and mission readiness before it leaves our warehouse
• Real Integration Support: We help you pair the H30T with your DJI M300 or M350, Live Deck, software, and accessories
• U.S.-Based Guidance: Our team includes FAA Part 107-certified experts and enterprise deployment specialists
• Public Safety Focus: We understand what matters in the field — visibility, speed, reliability, and compliance
• Rapid Fulfillment: Fast shipping, pre-sale advice, and post-sale support — all in one place



Build My Bundle

Need help pairing the H30T Zenmuse with your DJI Matrice platform, accessories, or Care Enterprise coverage? DSLRPros can help you build a mission-ready loadout.

Call 877-299-1075
Click Request Info/Quote to speak with an enterprise UAV advisor.

Specifications

General

• Weight: 920±5 g
• Ingress Protection Rating: IP54
• Supported Aircraft: Matrice 300 RTK (requires DJI RC Plus), Matrice 350 RTK
• Video Pre-Recording: Supported
• Angular Vibration Range: Hover: ±0.002°, Flight: ±0.004°
• Controllable Range: Tilt: -120° to +60°, Pan: ±320°

Infrared Thermal Camera

• Thermal Imager: Uncooled VOx Microbolometer
• Video Resolution: 1280×1024@30fps
• Photo Resolution: 1280×1024
• Photo Format: R-JPEG
• Max Digital Zoom: 32×
• Temperature Measurement Method: Spot Measurement, Area Measurement, Center Point Temperature Measurement
• Temperature Measurement Range: High Gain: -20° to 150° C (-4° to 302° F), -20° to 450° C (-4° to 842° F) (With Infrared Density Filter), Low Gain: 0° to 600° C (32° to 1112° F), 0° to 1600° C (32° to 2912° F) (With Infrared Density Filter)
• Noise Equivalent Temperature Difference (NETD): ≤50 mK @ f/1.0
• Lens: DFOV: 45.2°, Focal Length: 24 mm (Equivalent focal length: 52 mm), Aperture: f/0.95, Focus: 13 m to ∞
• High-Res Mode: Supported
• UHR Infrared Image: Supported

Zoom Camera

• Sensor: 1/1.8-inch CMOS, Effective Pixels: 40 MP
• Lens: DFOV: 66.7° to 2.9°, Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm), Aperture: f/1.6-f/5.2, Focus: 5 m to ∞
• Metering Mode: Spot Metering, Average Metering
• Shutter Speed: 2-1/8000 s
• ISO Range: Single Shot: 100-25600, Night Scene: 100-819200
• Video Resolution: Single Shot: 3840×2160@30fps, 1920×1080@30fps, Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
• Video Format: MP4
• Video Subtitles: Supported (embedded subtitles)
• Max Photo Size: 7328×5496, 3664×2748
• Photo Format: JPEG
• Video Codec and Bit Rate Strategy: H.264, H.265, CBR, VBR
• Hybrid Optical Zoom: 34×
• Max Zoom: 400×

Wide-Angle Camera

• Sensor: 1/1.3-inch CMOS, Effective Pixels: 48 MP
• Lens: DFOV: 82.1°, Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm), Aperture: f/1.7, Focus: 1 m to ∞
• Shutter Speed: 2-1/8000 s
• ISO Range: Single Shot: 100-25600, Night Scene: 100-409600
• Video Resolution: Single Shot: 3840×2160@30fps, 1920×1080@30fps, Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
• Video Format: MP4
• Video Subtitles: Supported (embedded subtitles)
• Max Photo Size: 8064×6048, 4032×3024
• Photo Format: JPEG
• Video Codec and Bit Rate Strategy: H.264, H.265, CBR, VBR

Laser Range Finder

• Wavelength: 905 nm
• Measurement Accuracy: ≤ 500 m: ±(0.2 m+measurement distance×0.15%), ≥ 500 m: ±1.0 m
• Measurement Range: 3-3000 m, Range for Common Objects: grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m
• Laser Spot Size: @100 m: approx. 50×450 mm, @1000 m: approx. 450×4500 mm
• Safety Regulation Level: Class 1

NIR Auxiliary Light

• Wavelength: 850 nm
• FOV: 4.6±0.6° (Round)
• Illumination Range: @100 m: Approx. 8m diameter circle

In the Box

• 1x Zenmuse H30T Gimbal Camera
• 1x Storage Case
• 1x Cleaning Cloth
